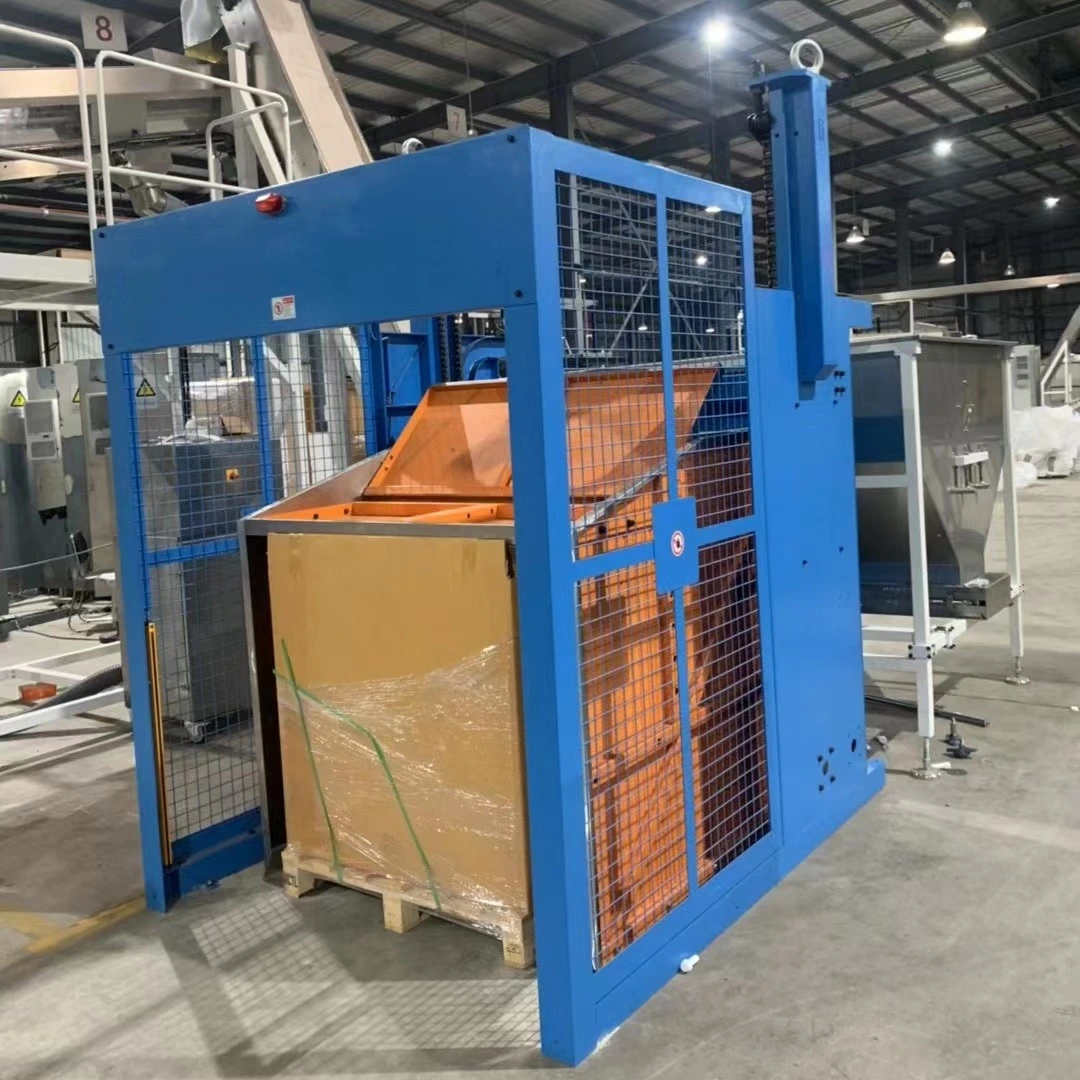

Custom servo moto dumping station for preforms

1: The forklift puts the turnover box into the lifting hopper to start the equipment, and when it is lifted to a certain angle, the equipment stops (time/position can be set). This function mainly prevents the preforms from being poured into the storage hopper too fast and too much due to too fast lifting. smashed.
When the pause time reaches the set time, the hoist continues to dump to the specified angle, and automatically returns to the starting point according to the set pause time, and the work is completed;
2. A 1.1-meter-high safety grating is installed at the entrance, and the hoist is in a stop state when the safety grating is working;
3: The storage hopper needs to be installed with low offside photoelectricity. When the storage hopper is full, the hoist does not work, and the hoist can be started in advance; when the low offside feedback signal is received, the hoist will automatically work;
4: The lifting dumper is equipped with a mechanical latch. This function is mainly to prevent casualties caused by the hopper falling when maintaining/cleaning the lifting dumper;
