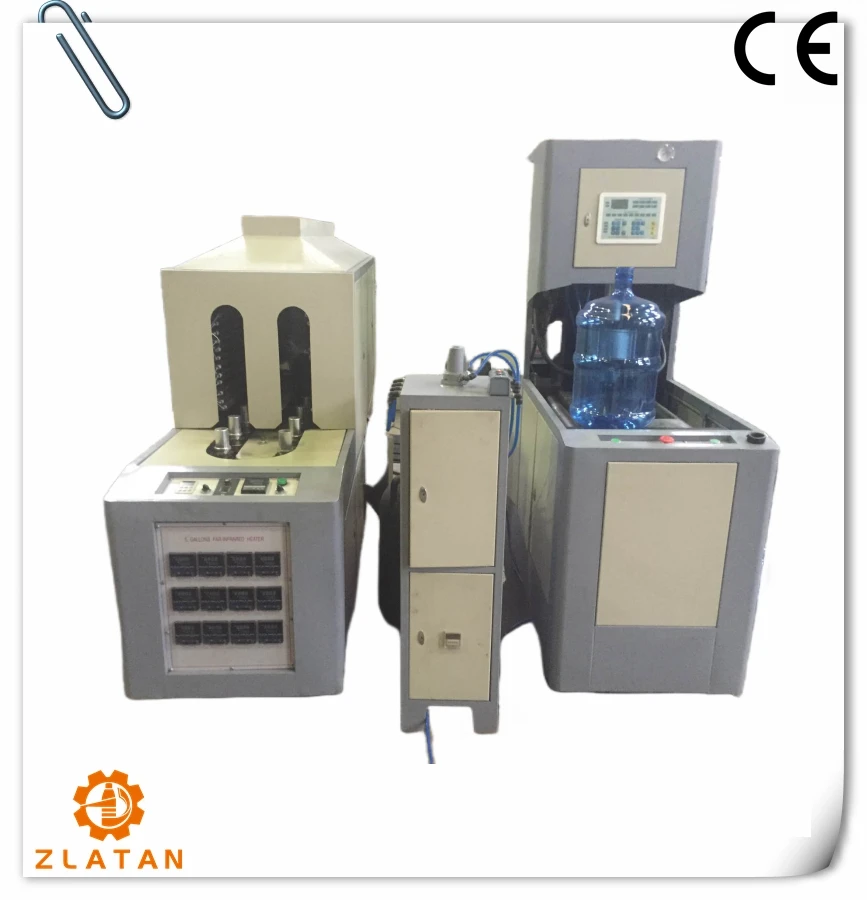

Semi auto 1-cavity 5 gallon bottle blowing machine

Two steps semi-automatic 5-gallon bottle-blowing machine has 1 cavity, 1 rotary heater, and 1 second heater, the biggest volume it can produce is 25L, and BPH can be up to 80

Semi auto 1-cavity 5 gallon bottle blowing machine
  • Semi auto 1-cavity 5 gallon bottle blowing machine
  • Semi auto 1-cavity 5 gallon bottle blowing machine
  • Semi auto 1-cavity 5 gallon bottle blowing machine
  • Semi auto 1-cavity 5 gallon bottle blowing machine
S/N Item Unit LF-88-C
1 Raw material PET/PMMA/PS/PP
2 working pressure(air) Mpa 0.8-1.2
3 Blowing-pressure Mpa 1.2-3.0
4 Voltage/Frequency V/Hz 220V/380V/50Hz、60Hz
5 Rated power Heater kW 15(220V)
Second heater(make the preform more transparent) 1.3(220V)
Air Compressor 15(380V)
6 Max mould effective dimension(L*W*H) mm 640*420*400
7 Mould Opening Stroke mm 350
8 Max mold thickness mm 400
9 Center Distance Between Two Cavities mm
10 Volume of product ml Max 25L
11 Max Stretch Length mm 700
12 Clamping force kN 100
13 Capacity pcs/h 80BPH(for 5gallon)
14 Machine Dimension
(L*W*H)
Main Machine mm 2110*605*1950
Heater 3650*660*1620
Second heater(make the preform more transparent) 380*380*1220
15 Machine Weight Main Machine kg 1800
Heater 400
Second heater(make the preform more transparent) 60
16 Air Compressor Dimension mm 1800*770*1370
Weight kg 480
17 Air Filter Dimension mm 250*250*600
Weight kg 25
18 Freezing Dryer Dimension mm 890*550*1000
Weight kg 175
14 Temperature range 60-110(PET)
160-180(PMMA、PS、PP)
