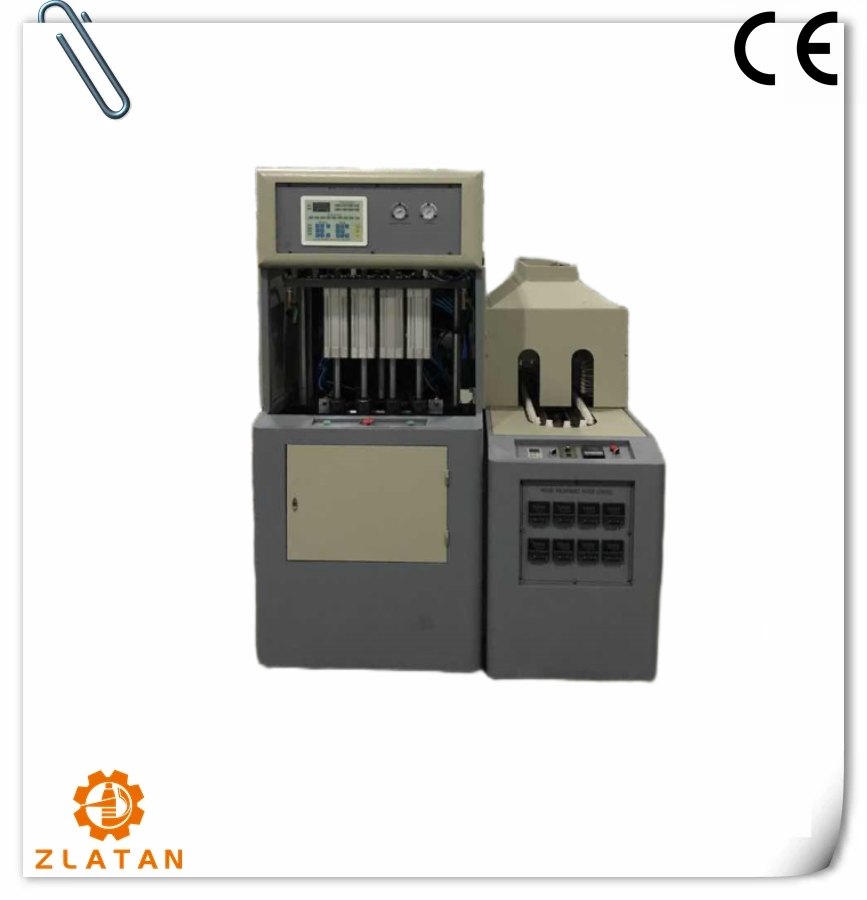

S4 semi automatic 4-cavity pet bottle stretch blow molding machine

S4 Semi-automatic bottle blowing machine can produce 10ml to 2000mol bottles, 2000 bottles per hour, its production capacity can be up to 2500 when equipped with an auto loader

S4 semi automatic 4-cavity pet bottle stretch blow molding machine
  • S4 semi automatic 4-cavity pet bottle stretch blow molding machine
  • S4 semi automatic 4-cavity pet bottle stretch blow molding machine
  • S4 semi automatic 4-cavity pet bottle stretch blow molding machine
  • S4 semi automatic 4-cavity pet bottle stretch blow molding machine
S/N Item Unit LF-S4
1 Raw material PET/PMMA/PS/PP
2 working pressure(air) Mpa 0.7-0.9
3 Blowing-pressure Mpa 0.9-3.0
4 Voltage/Frequency V/Hz 220V/380V/50Hz、60Hz
5 Rated power Heater kW 10.5(220)
Air Compressor 15(380V)
6 Max mould effective dimension(L*W*H) mm 360*535*220
7 Mould Opening Stroke mm 210
8 Max mold thickness mm 220
9 Center Distance Between Two Cavities mm 150
10 Volume of product ml 10-2000
11 Max Stretch Length mm 360
12 Clamping force kN 50
13 Capacity pcs/h 2200-2400B/H
14 Machine dimension Main machine mm 1330*780*2000
(L*W*H) Heater 2200*610*1520
15 Machine weight Main machine kg 600
Heater 300
16 Air Compressor Dimension(L*W*H) mm 1700*670*1220
weight kg 480
17 Air Compressor Dimension(L*W*H) mm 250*250*600
weight > kg 25
18 Freezing Dryer Dimension(L*W*H) mm 890*550*1000
weight kg 175
19 Temperature range 60-110(PET)
150-180(PMMA、PS、PP)
