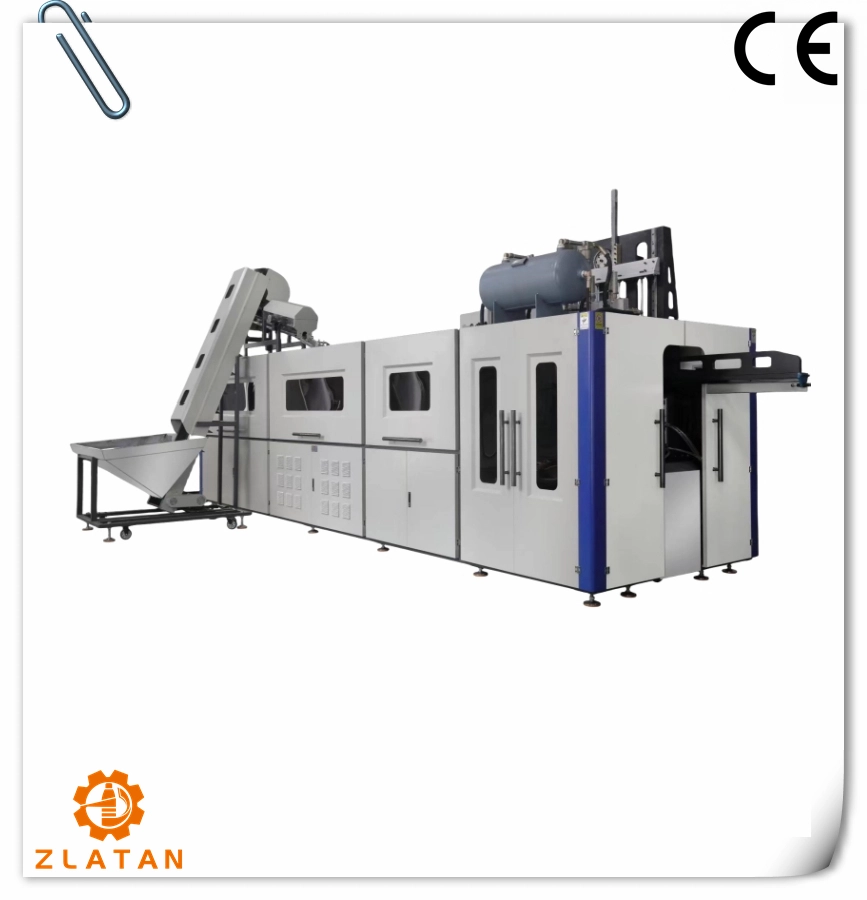

LFGD High speed adjustable pitch fully automatic bottle blowing machine

  • Efficient, energy-saving, even heating, short pitch, compact space

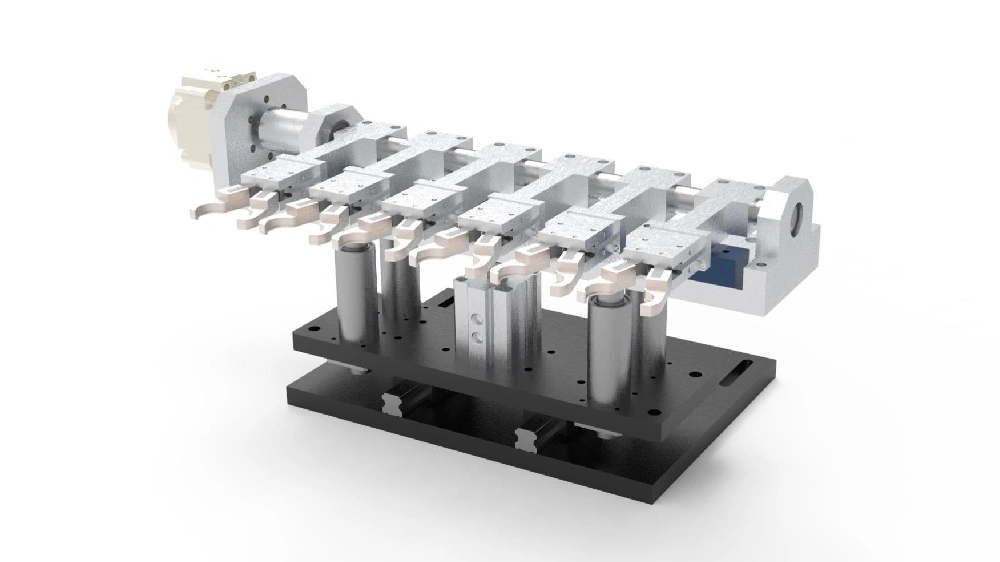

  • The servo pitch adjustable mechanism converts the preform from the heater to blowing molds

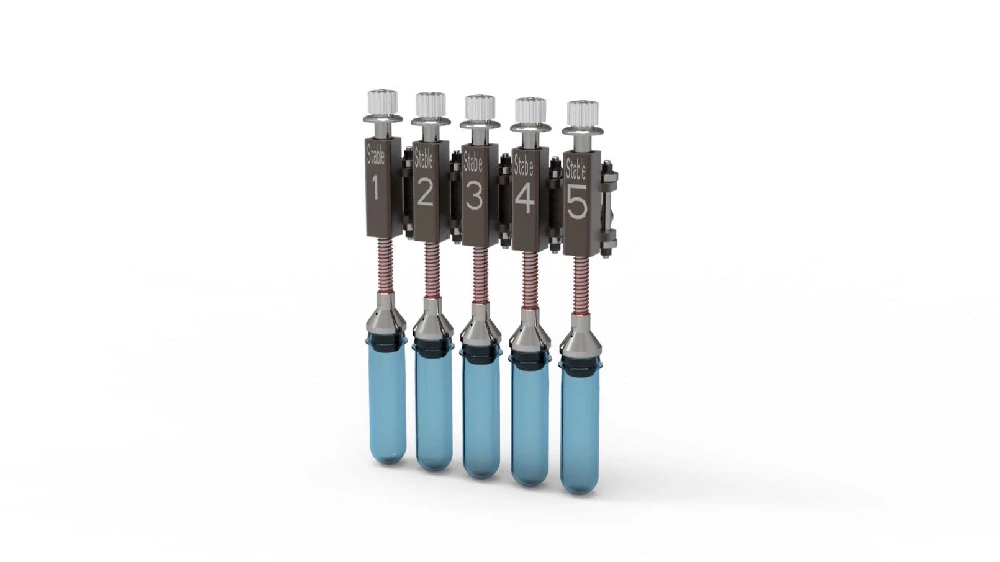

  • Preform fixation assembly, secures preforms, rapid heating

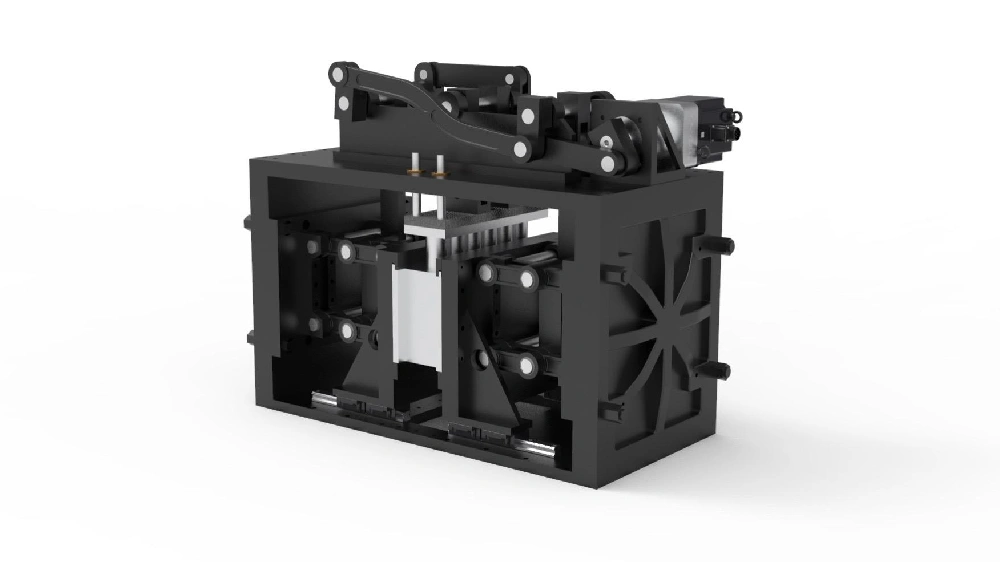

  • Servo mold clamping and servo stretching structure
LFGD High speed adjustable pitch fully automatic bottle blowing machine
  • LFGD High speed adjustable pitch fully automatic bottle blowing machine
  • LFGD High speed adjustable pitch fully automatic bottle blowing machine
  • LFGD High speed adjustable pitch fully automatic bottle blowing machine
  • LFGD High speed adjustable pitch fully automatic bottle blowing machine
  • LFGD High speed adjustable pitch fully automatic bottle blowing machine

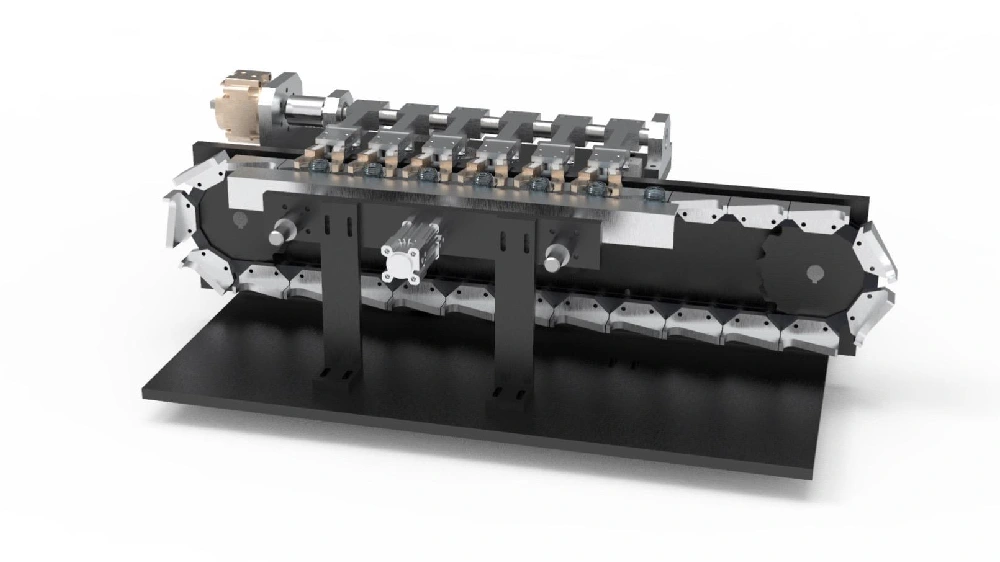

  • Employing a consistently rotating preform feeding system guarantees a rapid and continuous supply of preforms
  • Preforms undergo no rotational or alternate maneuvers, effectively minimizing maintenance and part replacement expenses.
  • Numerous safety protection mechanisms ensure uninterrupted and continuous production, coupled with a preform revolution system that ensures constant heating for uniform and efficient temperature distribution.
  • The concentration of preform heating optimizes the heating space through lamp heating, enhancing preform heating efficiency and incorporating an adaptable pitch structure for energy conservation.
  • Direct water flow through the heating box, along with the incorporation of a cold air system, safeguards the integrity of preform threads, preventing distortion.
  • Primary actions are propelled by servo motors to ensure swift operation, accurate positioning, and seamless automatic transitions between actions to fulfill demanding production capacity requirements.
产品规格 Specification Unit     LFGD-9
模穴数 No. of Cavity Cav. 9
瓶子间距 Cavity pitch mm 76.2
瓶子最大容量 Max. capacity ml 650
加热间距 Heating pitch mm 76.2
坯头数 Preform holder pcs 180
瓶口直径 Preform neck(inner dia.) mm 26-38
最大瓶坯高度 Preform height(max) mm 160
最大瓶身内径 Bottle diameter(max.) mm 95
最大瓶身高度 Bottle height(max) mm 320
加热箱数量 Heating ovens unit 8
灯管数量 Infrared lamps pcs 48
机器使用功率 Max. heating power kw 65
装机功率 Specified power consumption kw 210
电压 Voltage V 380V(50/60Hz)
外形尺寸 mm 6400X2300X1950
稳定产量 Theory production       500ml(16g) round bottle 16000BPH
