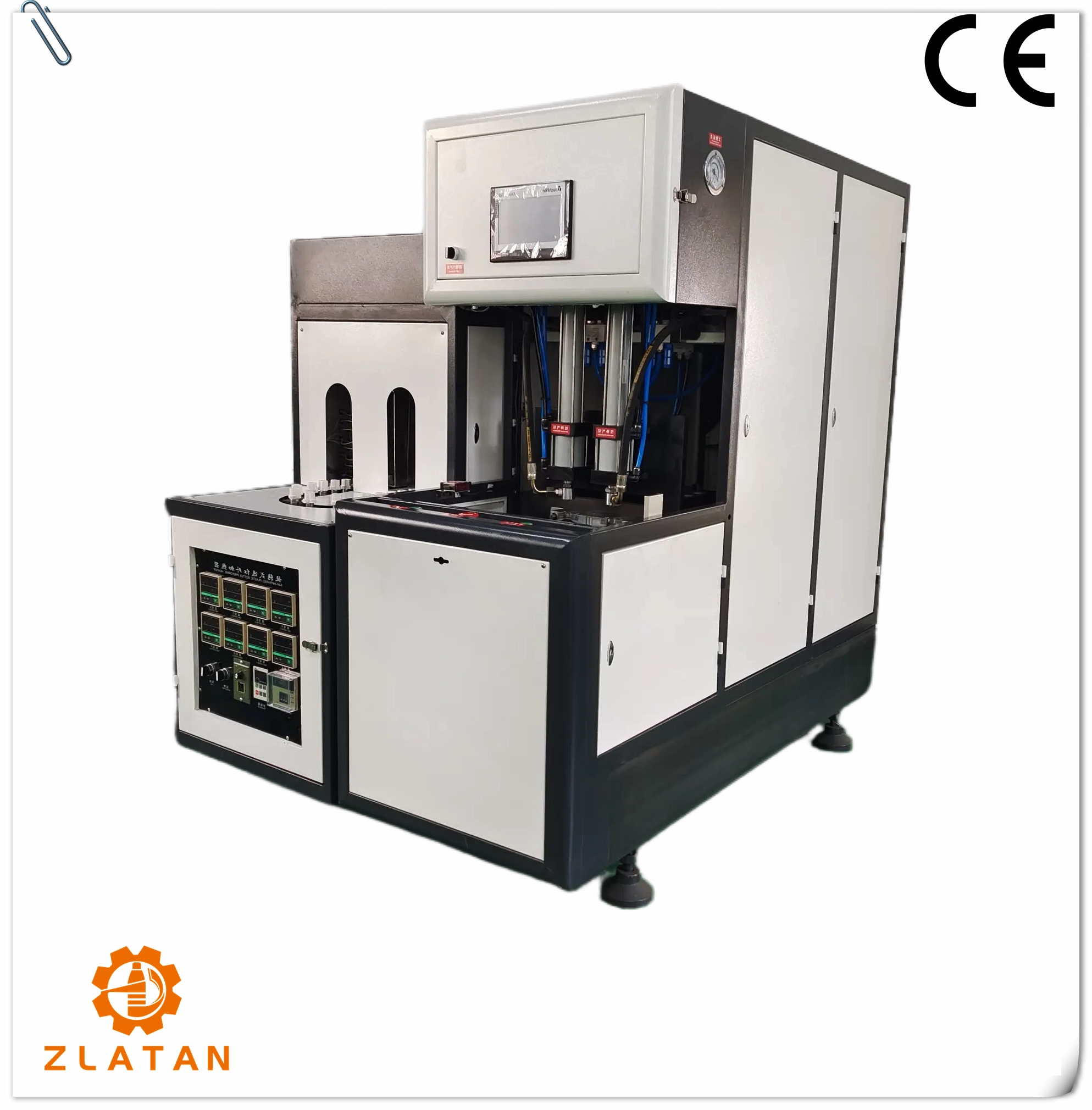

LF-88B-Two Cavities Semi-Automatic PET Bottle Blow Molding Machine

The LF-88-B series semi-automatic bottle blowing machine is designed for bottles ranging from 3-liter to 8-liter with two cavities, 250 bottles per hour for 5L bottles. It is suitable for producing cosmetic, sanitizer, and washing liquid packages. This machine offers benefits such as cost-effectiveness, compact space, and excellent efficiency.

LF-88B-Two Cavities Semi-Automatic PET Bottle Blow Molding Machine
  • LF-88B-Two Cavities Semi-Automatic PET Bottle Blow Molding Machine
  • LF-88B-Two Cavities Semi-Automatic PET Bottle Blow Molding Machine
  • LF-88B-Two Cavities Semi-Automatic PET Bottle Blow Molding Machine
  • LF-88B-Two Cavities Semi-Automatic PET Bottle Blow Molding Machine
S/N Item Unit LF-88-B
1 Raw material PET/PMMA/PS/PP
2 working pressure(air) Mpa 0.8-1.2
3 Blowing-pressure Mpa 1.0-3.0
4 Voltage/Frequency V/Hz 220V/380V/50Hz、60Hz
5 Rated power Heater kW 6(220)  Customize
Air Compressor 11(380V) Customize
6 Max mould effective dimension(L*W*H) mm 500*340*280
7 Mould Opening Stroke mm 230
8 Max mold thickness mm 300
9 Center Distance Between Two Cavities mm
10 Volume of product ml 20-8000
11 Max Stretch Length mm 400
12 Clamping force kN 60
13 Capacity pcs/h 250BPH(for 5L)
14 Temperature range 60-110(PET)
160-180(PMMA、PS、PP)
