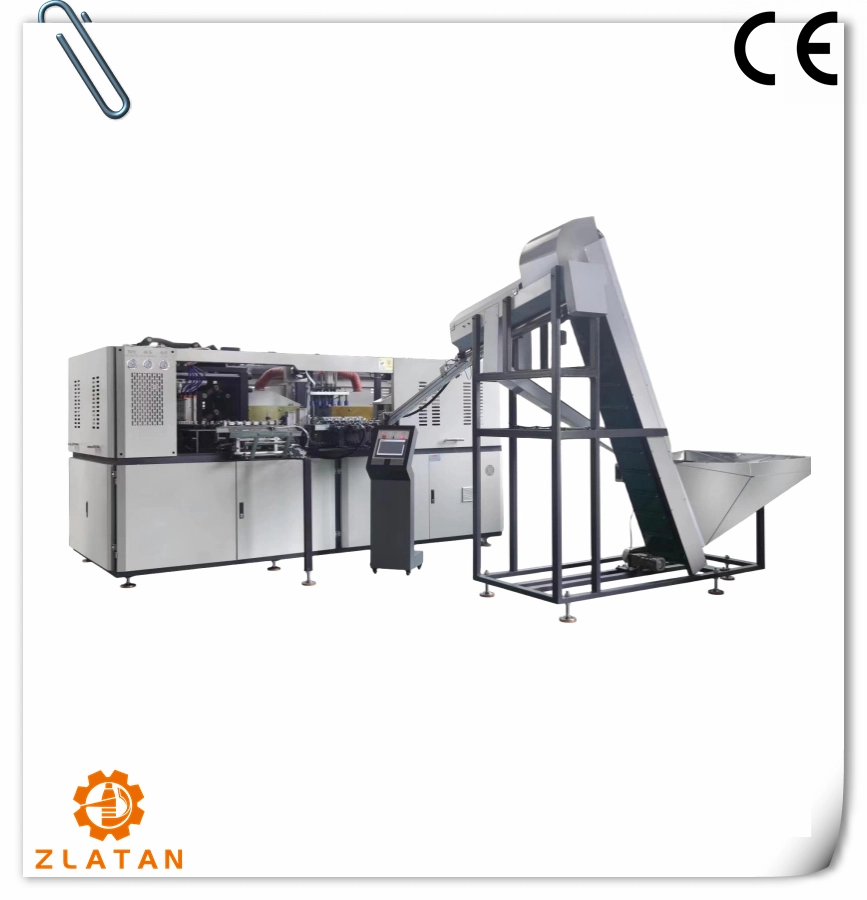

LF-6(0.6L) fully automatic PET bottle stretch blowing machine

The LF-6(0.6ml) fully automatic blowing machine boasts automation, high efficiency, ease of operation, and straightforward maintenance. It is equipped with a user-friendly design that prioritizes safety and reliability. Engineers can easily comprehend the gas path, circuit, and actions. The operation mode offers both manual and automatic options.

LF-6(0.6L) fully automatic PET bottle stretch blowing machine
  • LF-6(0.6L) fully automatic PET bottle stretch blowing machine
  • LF-6(0.6L) fully automatic PET bottle stretch blowing machine
  • LF-6(0.6L) fully automatic PET bottle stretch blowing machine
  • LF-6(0.6L) fully automatic PET bottle stretch blowing machine

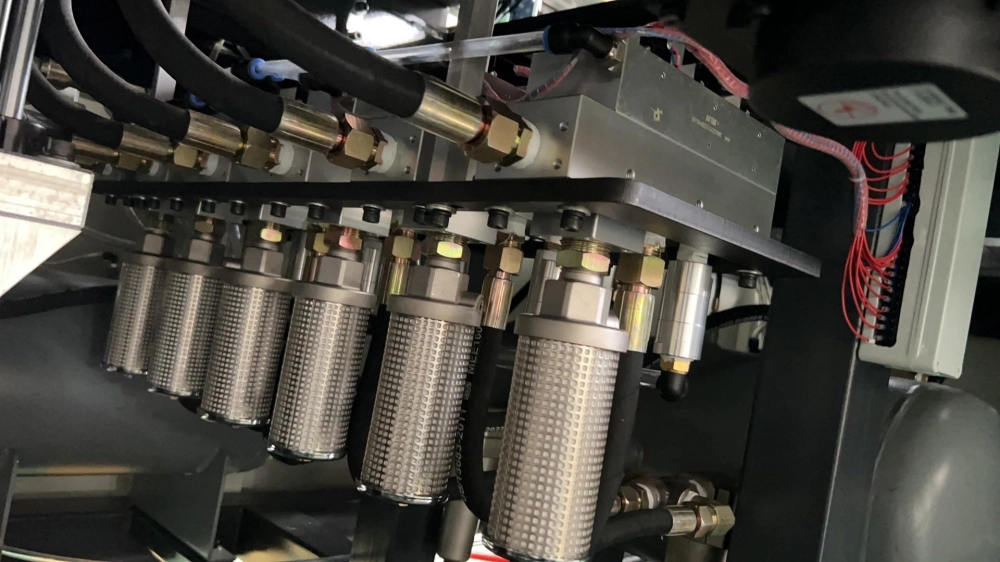

Regarding the LF-6 fully automatic PET bottle-blowing machine, its space-saving design is compact. An automated preform delivery system is in place. A sophisticated PLC control system, along with a lightweight and uncomplicated touch-screen control panel, ensures precise control. The independent linear operation system is both straightforward and stable. The heating system is distinctive, utilizing infrared heating tube temperature control for accuracy, efficient preform heating, uniform heat distribution, and easy adjustment. An exclusive air storage device is employed, featuring three stages: action, pre-blowing, and separate blowing of the gas tank to accommodate varying air pressure requirements. The cooling system effectively achieves the desired cooling effect, ensuring that bottles remain unaffected by infrared light, preventing deformation. Cylinder-driven actions eliminate the need for an oil pump, minimizing pollution. Each action includes a safety self-locking mechanism, automatically restoring the machine to a safe state in case of a failure. The high-pressure clamping device guarantees a bottle body free from noticeable mold lines.

产品规格 Specification Unit LF-6
模穴数 No. of Cavity Cav. 6
瓶子间距 Cavity pitch mm 101.6
瓶子最大容量 Max. capacity ml 600
加热间距 Heating pitch mm 101.6
坯头数 Preform holder pcs 114
瓶口直径 Preform neck(inner dia.) mm 26-38
最大瓶坯高度 Preform height(max) mm 160
最大瓶身内径 Bottle diameter(max.) mm 95
最大瓶身高度 Bottle height(max) mm 320
加热箱数量 Heating ovens unit 5
灯管数量 Infrared lamps pcs 40
加热最大功率 Max. heating power kw 65
配置功率 Specified power consumption kw 100
电压 Voltage V 380V(50/60Hz)
外形尺寸 Size mm 5200X200X1950
理论产量 Theory production 600ml(18g) round bottle 9000pcs/h
名称/NAME 产地/ORIGIN 品牌/BRAND
PLC 日本/JAPAN 三菱/MITSUBISHI
空气开关/MAGNET SWITCH 浙江/CHINA 正泰/ZHENTAI
触摸屏/TOUCH SCREEN 日本/JAPAN 三菱/MITSUBISHI
放大板/SCREEN 台湾/TIAWAN CHINA 台达/TAIDA
开关电源/AC SWITCH 台湾/TIAWAN CHINA 台达/TAIDA
减速机/RUDUCER MOTOR 台湾/TIAWAN CHINA 瓦格/WAGE
伺服/SERVO 无锡/CHINA 信捷/XINJIE
驱动器/DRIVER 无锡/CHINA 信捷/XINJIE
继电器RELAY 日本/JAPAN 欧姆龙/OMRON
交流接触器/AC CONTACTOR 法国/FRANCE 施耐德SCHNEIDER
动作阀/VALVE 韩国/KOREA PMC
过滤器/FILTER 日本/JAPAN SMC
气缸/CYLINDER 台湾/TIAWAN CHINA 亚德客/AIRTAC
合模导轨/MOLD GUIDE 台湾/TAIWAN PHI
