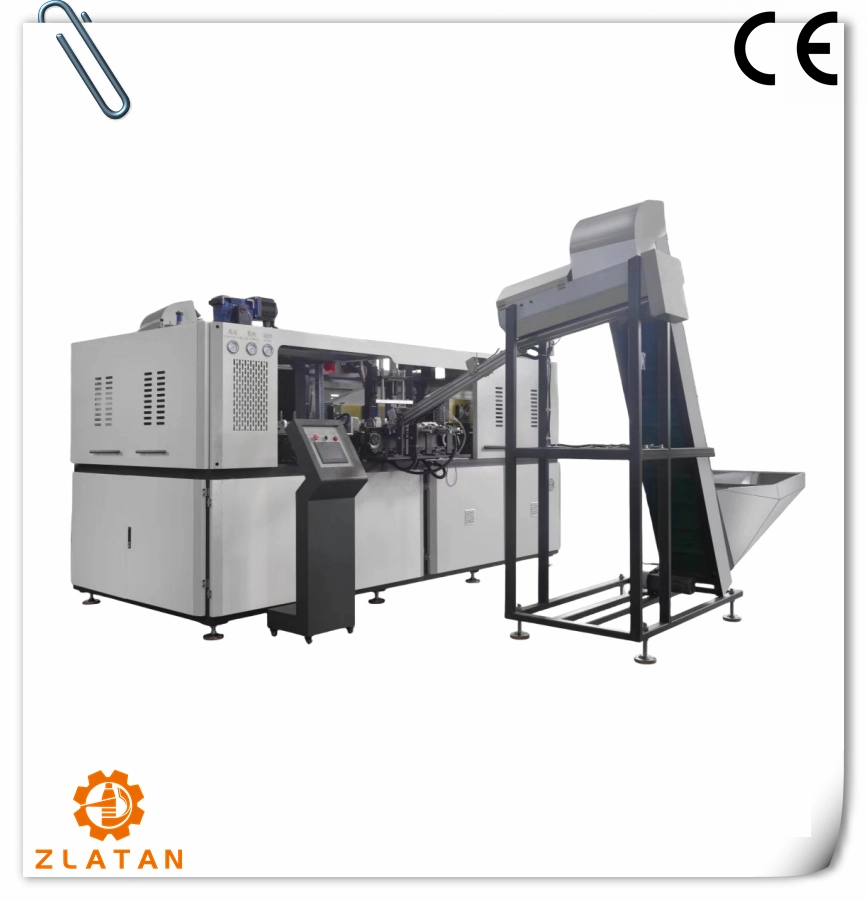

LF-2(5L)-Two cavities fully automatic bottle stretch molding machines

HomeProductFully Automatic Blowing MachinesLF-2(5L)-Two cavities fully automatic bottle stretch molding machines

LF-2(5L)-Two cavities fully automatic bottle stretch molding machines

  • Utilizing a drawer-type structure facilitates effortless mold replacement
  • Lubrication streamlining: A dedicated automatic lubrication configuration eliminates the necessity for manual intervention
  • The plastic-coated shell offers increased convenience for cleaning, ensuring the machine maintains a pristine condition for an extended period
LF-2(5L)-Two cavities fully automatic bottle stretch molding machines
  • LF-2(5L)-Two cavities fully automatic bottle stretch molding machines
  • LF-2(5L)-Two cavities fully automatic bottle stretch molding machines
  • LF-2(5L)-Two cavities fully automatic bottle stretch molding machines
  • LF-2(5L)-Two cavities fully automatic bottle stretch molding machines
产品规格 Specification Unit LF-2(5L)
模穴数 No. of Cavity cavity 2
瓶子间距 Cavity pitch mm 203.2
瓶子最大容量 Max. capacity ml 5000
加热间距 Heating pitch mm 101.6
坯头数 Preform holder pcs 92
瓶口直径 Preform neck(inner dia.) mm 65
最大瓶坯高度 Preform height(max) mm 200
最大瓶身内径 Bottle diameter(max.) mm 180
最大瓶身高度 Bottle height(max) mm 400
加热箱数量 Heating ovens unit 4
灯管数量 Infrared lamps pcs 40
机器使用功率 Max. heating power kw 52
电压 Voltage V 380V(50/60Hz)
外形尺寸 Size mm 4500*1700*2000
稳定产量 Capacity Round bottle 1600BPH(1 SET)
