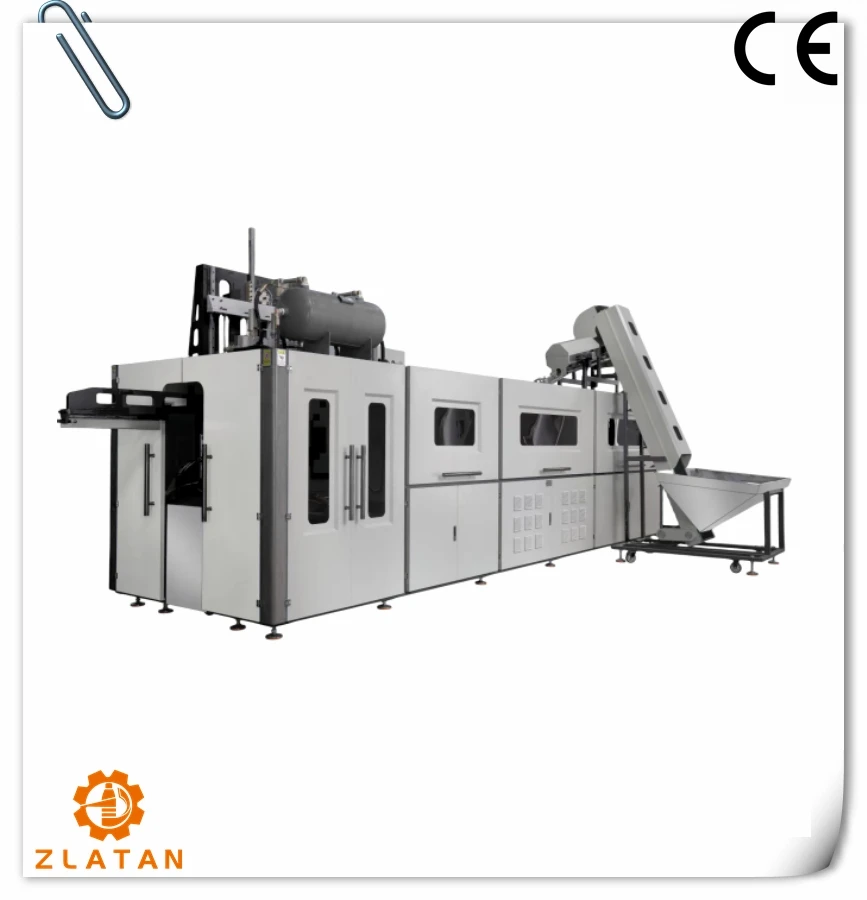

High speed adjustable pitch full servo automatic bottle stretch molding machine

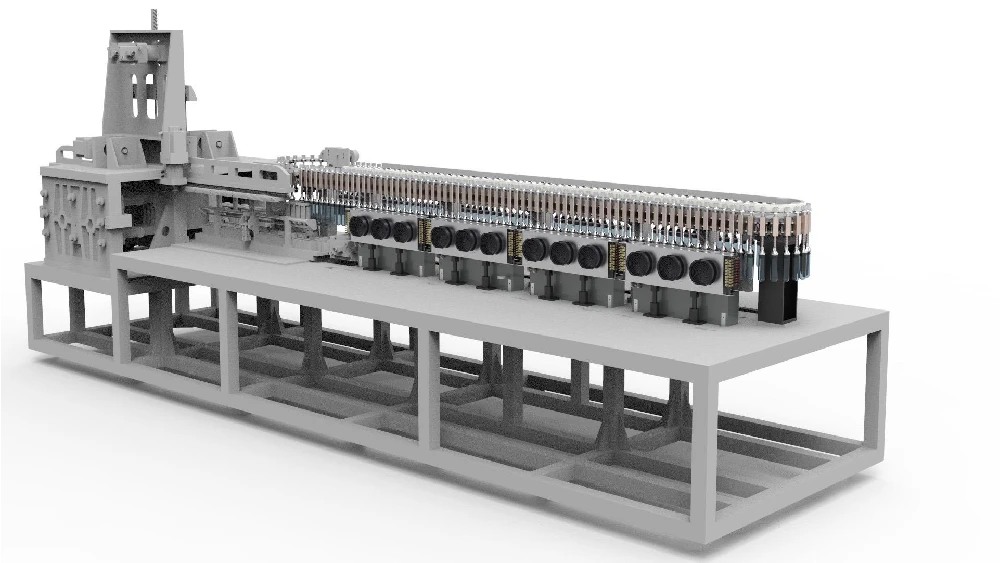

  • Effective, energy-conserving, uniform heating, brief pitch, and a space-efficient design.

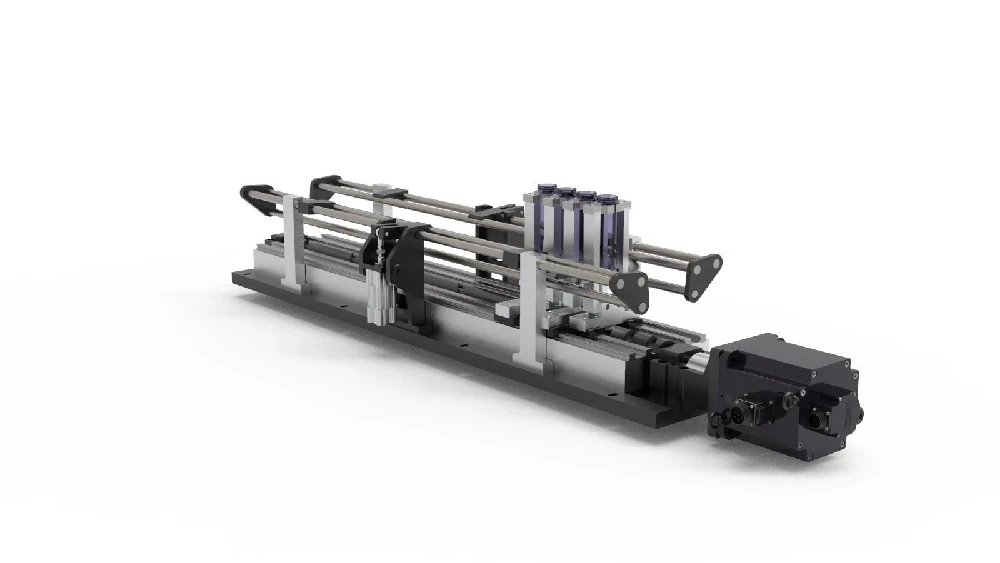

  • The servo-operated pitch adjustment mechanism transforms preforms from the heater to the blowing molds.

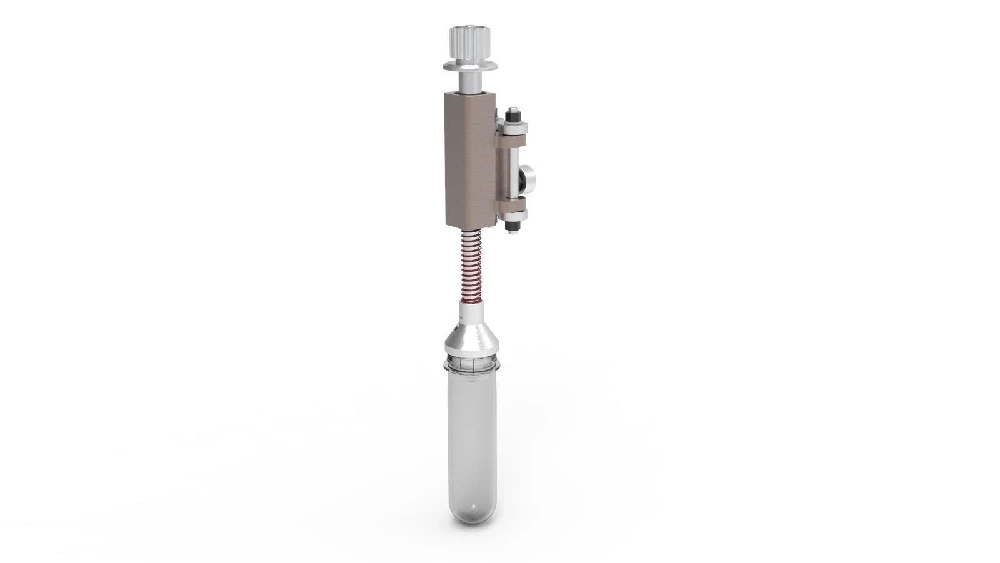

  • A preform fixation assembly ensures the swift and secure immobilization of preforms, facilitating rapid heating.
  • Employing servo technology, both the mold clamping and stretching structures contribute to enhanced efficiency.
High speed adjustable pitch full servo automatic bottle stretch molding machine
  • High speed adjustable pitch full servo automatic bottle stretch molding machine
  • High speed adjustable pitch full servo automatic bottle stretch molding machine
  • High speed adjustable pitch full servo automatic bottle stretch molding machine
  • High speed adjustable pitch full servo automatic bottle stretch molding machine



产品规格

Specification Unit

SEGD-6

模穴数

No. of Cavity Cav. 6
瓶子间距 Cavity pitch mm

120

瓶子最大容量

Max. capacity ml 1500
加热间距 Heating pitch mm

38

坯头数

Preform holder pcs 96
瓶口直径 Preform neck(inner dia.) mm

<30

最大瓶坯高度

Preform height(max) mm 100
最大瓶身内径 Bottle diameter(max.) mm

72

最大瓶身高度

Bottle height(max) mm 260
加热箱数量 Heating ovens unit

4

灯管数量

Infrared lamps pcs 24
机器使用功率 Max. heating power kw

<35

装机功率

Specified power consumption kw 240
电压 Voltage V

380V(50/60Hz)

外形尺寸

mm 5800X1800X2.6
稳定产量 Theory

production

500ml(18g) round bottle

12000pcs/h
