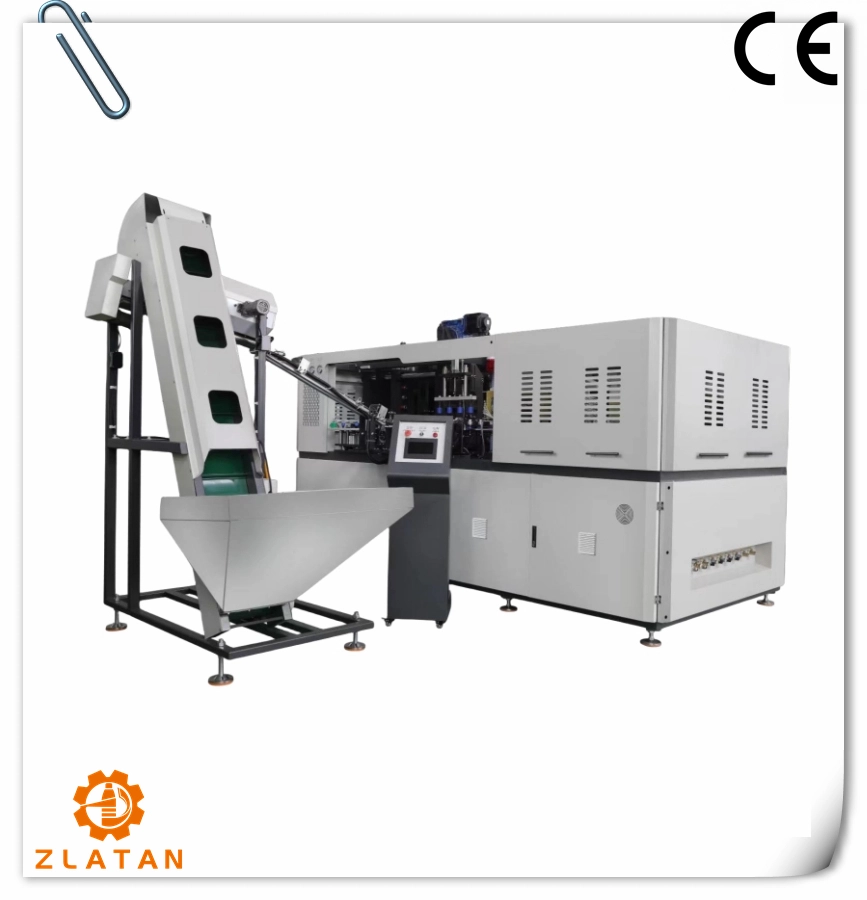

Fully automatic 4 cavities 4500BPH bottle blowing machines for 500ml to 2000ml

  • Achieving a consistent and precise high-speed performance by employing a microcomputer PLC control system that is both stable and advanced
  • The entire production process is automated, offering the benefits of minimal investment, heightened efficiency, user-friendly operation, uncomplicated maintenance, and enhanced safety features
  • Suited for versatile production in terms of quantity and diverse bottle shapes, with a broad range of applications to cater to customer requirements.
Fully automatic 4 cavities 4500BPH bottle blowing machines for 500ml to 2000ml

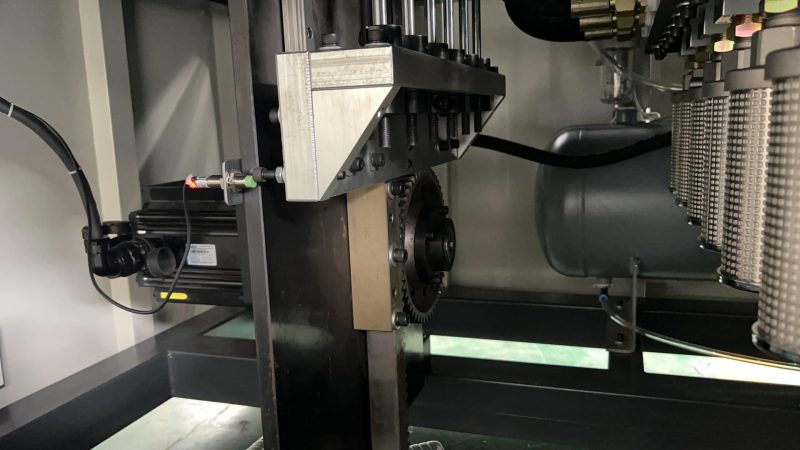

  • Fully automatic 4 cavities 4500BPH bottle blowing machines for 500ml to 2000ml
  • Fully automatic 4 cavities 4500BPH bottle blowing machines for 500ml to 2000ml
  • Fully automatic 4 cavities 4500BPH bottle blowing machines for 500ml to 2000ml
  • Fully automatic 4 cavities 4500BPH bottle blowing machines for 500ml to 2000ml
产品规格 Specification Unit LF-4(MAX 2.0L)
模穴数 No. of Cavity cav. 4
瓶子间距 Cavity pitch mm 114.3
瓶子最大容量 Max. capacity ml 2000
加热间距 Heating pitch mm 114.3
坯头数 Preform holder pcs 96
瓶口直径 Preform neck(inner dia.) mm 26-38
最大瓶坯高度 Preform height(max) mm 180
最大瓶身内径 Bottle diameter(max.) mm 95
最大瓶身高度 Bottle height(max) mm 320
加热箱数量 Heating ovens unit 6
灯管数量 Infrared lamps pcs 36
机器使用功率 Max. heating power kw 56
装机功率 Specified power consumption kw 96
电压 Voltage V 380V(50/60Hz)
外形尺寸

Size

mm 4600*1700*1950
稳定产量 Theory production       500ml(18g) round bottle 4500BPH
Product Name Origin Brand
Magnetic switch TAIWAN KITA
PLC JAPAN MITSUBISHI
Touch screen JAPAN MITSUBISHI
Switching power supply Taiwan DELTA
AC contactor France Schneider
Action valve JAPAN PMC
Filter JAPAN SMC
Cylinder TAIWAN MINDMAN
Relay JAPAN OMRON
Clamping rail TAIWAN PHI
Reducer motor TAIWAN WAGE

  • Are you manufacturer?

    Yes, we have been produced the crusher wear parts for more than 20 years.

  • No drawings?

    No Worries. There are more than 60,000 drawings in the CCT database

  • How long is the delivery time?

    Generally it is 35~45 days. It is according to quantity.

  • What is the minimum order quantity?

    1 set. Our service will be to satisfy the needs of every client.
